BF-X2ZB-V2
WINSTAT Series

Thin, lightweight, and equipped with a cleaning check function！
The static elimination area can be selected using two types of louvers.

Purpose：: LCD panelsAssembly processesPC board mounting processesInspection processesPrinting, coating processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort range

Function：

About Icons

Thin and lightweight high-frequency corona discharge method fan-type ionizer.
Louver and emitter needle easy to remove and replace.
Can choose the area for static elimination with two types of louvers.
Main unit angle can be adjusted and locked and the angle never changes due to vibrations.
With detecting the abnormal discharge through the discharge emitter, it shows with C.C alarm LED and it links with signal output.
Meets RoHS standards.(2002/95/EC)

(Left) ：Straight Louver
(Right)：Wide angle Louver

(Left) ：Discharge needle unit(DNU-W85)
(Right)：Filter for replacement(10 sheets package)(OBF-F2ZA-1-10)

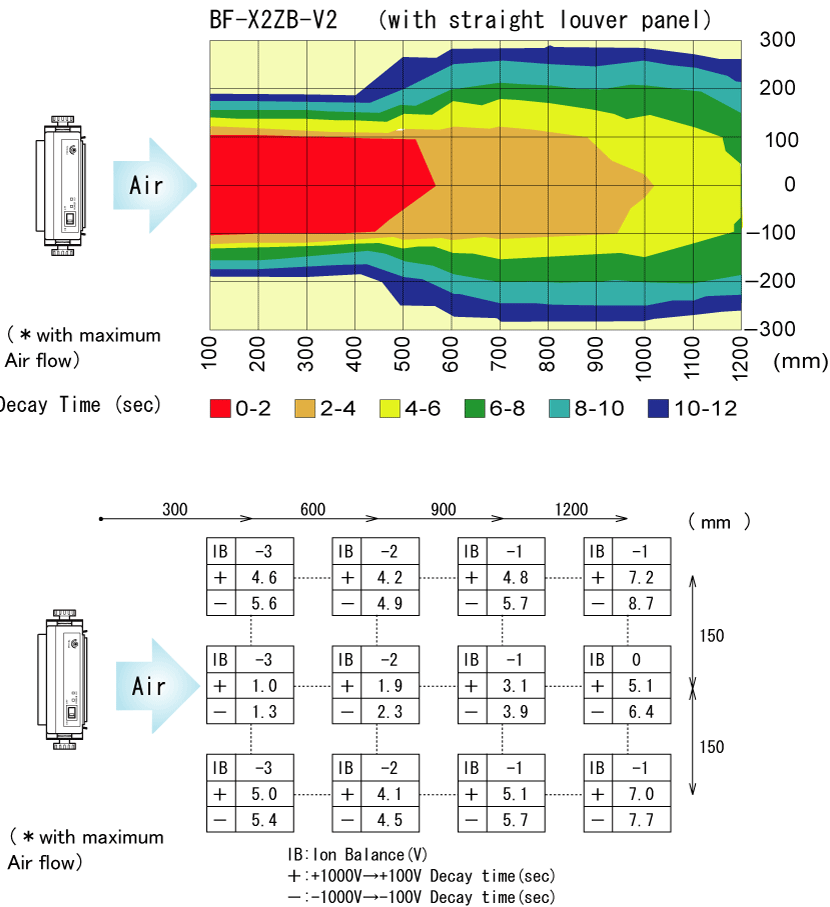

＊ Test by CPM with 150x150mm plate (20pF)
＊ Above data is actual data not for guaranteed.

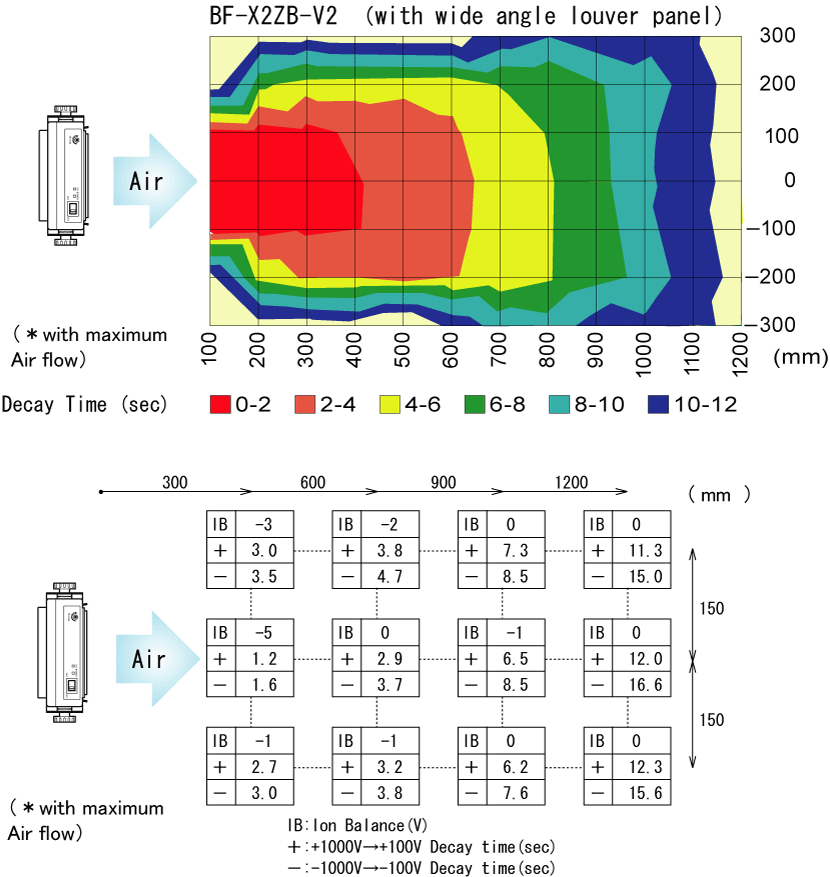

＊ Test by CPM with 150x150mm plate (20pF)
＊ Above data is actual data not for guaranteed.

Model	BF-X2ZB-V2
Input power supply	DC24 V (with AC100 to 240 V AC adapter)
Electric consumption	10 VA
Output voltage	AC 3,000 V
Ion balance	±10 V or less (distance 300 mm; when shipped from the factory)
Airflow	1.6 to 3.3 m³ / min
Air speed	1.9 to 3.2 m / sec (straight louver, distance 300 mm; centered) 0.7 to 0.9m / sec (wide-angle louver, distance 300 mm; centered)
Ozone density	0.04 ppm or less (distance 150 mm)
Operating Environment	0 to 40℃ / 15 to 65% RH (no condensation)
Output signal	Normally Close contact by MOS FET relay no voltage contact output Abnormal high voltage (Red LED with ALARM)
Main unit dimensions	150×182×68 mm (W×H×D) not including protruding portion
Weight	Approx. 820 g (with Bracket)
Noise level	57 dB(A) (distance 1m)
Accompanying items	Operation manual, AC adapter, wide-angle louver, signal output cable, cleaning brush
Optional parts	Discharge needle unit(DNU-W85), Filters (OBF-F2ZA-1-10:package of 10)
