BF-XME
WINSTAT Series

The Winstat BF-XME is the successor to the BF-XMB. Compared to conventional products, high-speed static elimination (20% UP) is possible, realizing a more stable ion balance.

Purpose：: Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort rangeSpace-savingPrintingcoating processesforeign matter

Function：

About Icons

Ionized air reaches further, comparing with conventional product, the speed of static elimination improved too(approx.20%).
Achieved a more table ion-balance than conventional model.
Less abrasions and dirts of electric discharge needle that shows stable static elimination performance for a long term.
The louvers and discharge needles can be easily disassembled without special tools, making maintenance more convenient.

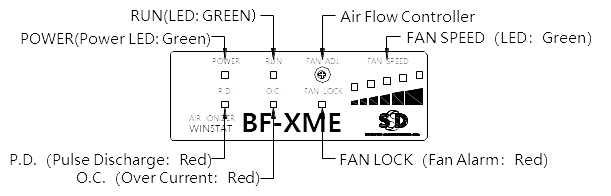

When discharge or abnormal operation occur, the front indicator light and signal will remind at the same time.
The air volume can be adjusted steplessly.

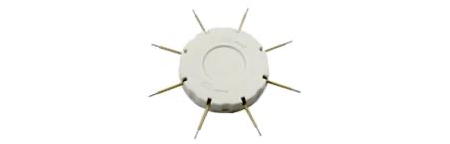

Replacement discharge needle unit: DNU-W60

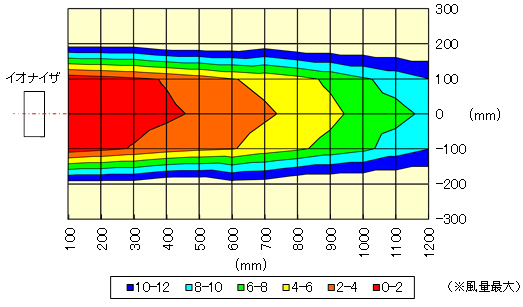

（Note1）：Test by CPM with 150x150mm plate(20pF).
（Note2）：The above data are measured valve, not for guaranteed.

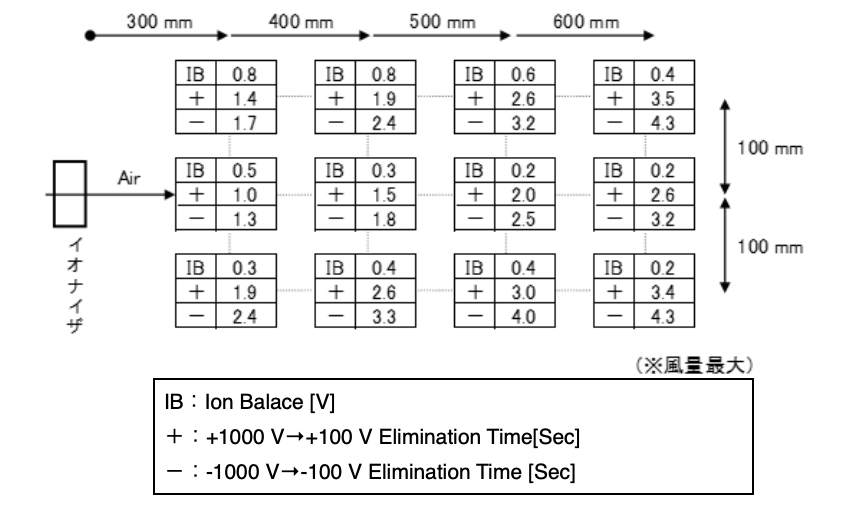

（Note1）：Test by CPM with 150x150mm plate(20pF).
（Note2）：The above data are measured valve, not for guaranteed.

Model	BF-XME
Input power supply	DC24 V (with AC 100~240V ACadapter)
Electric consumption	6 VA
Output voltage	±7,000 V0-p
Ion balance	±3V or less (Distance:300mm; Factory default)
Air Volume	0.7 to 1.2 m³ / min
Air speed	1.2 to 1.9 m / sec (Distance: 300mm center)
Ozone density	0.004 ppm or less (Distance 150 mm)
Error output	MOS FET relay Non-voltage b contact output (High Voltage discharge or abnormal operation)
Operating Environment	0 to 40℃ / 15 to 85% RH (No condensation)
Main unit dimensions	104×126×50 mm (W×H×D) ※Main body only
Weight	Approx. 530g (with stand)
Noise	51 dB(A) (Distance 1 m)
Material	Main body:ABS, Emitter needle:tungsten, Stand:SECC, Louver:PC/ASA
Accessories	Manual, AC adapter, 2pcs lead wire for error output

PDF file is here
