BF-X4ME
WINSTAT Series
Wide 400-mm horizontal type. Safety is ensured through detection of microdischarge and overcurrent. Equipped with HDC-AC for stable static elimination performance over the long term.
- Purpose：
- Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort rangePrintingcoating processesforeign matter
- Function：
-
Product features
BF-X4ME is an updated model of BF-X4MB and thin and lightweighted air ionizer product, which can eliminate a wide range of statics up to 400mm. HDC-AC ionizer ensures the long-term stability of static elimination performance and extends the longevity of maintenance duration.
- Wide range static elimination upto 400mm.
- HDC-AC transformer gives long-term stable static elimination perofrmance.
- Resin-made casing reduced weight.
- Use two120mm fan motors (continously changeable) to produce large amout of airflows with high-speed static elimination.
- Easy to detach parts for maintenance as louver and emitter needles only need a finger press to detach from the unit, no extra tools needed.
- Safety design
- power off for louver removal.
- micro-discharge and over-current detection. - Adjustable angle with lock function to prevent change of angle due to vibration.
Options
(Left) ：Discharging needle unit for replacement(DNU-W85)
(Right)：Filters for replacement(10 sheets package)(OBF-F2ZA-1-10)

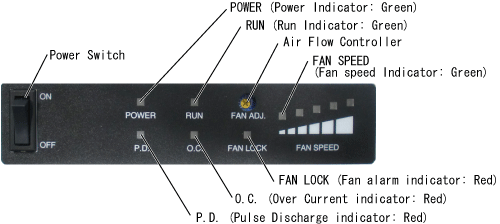

Indicator Panel

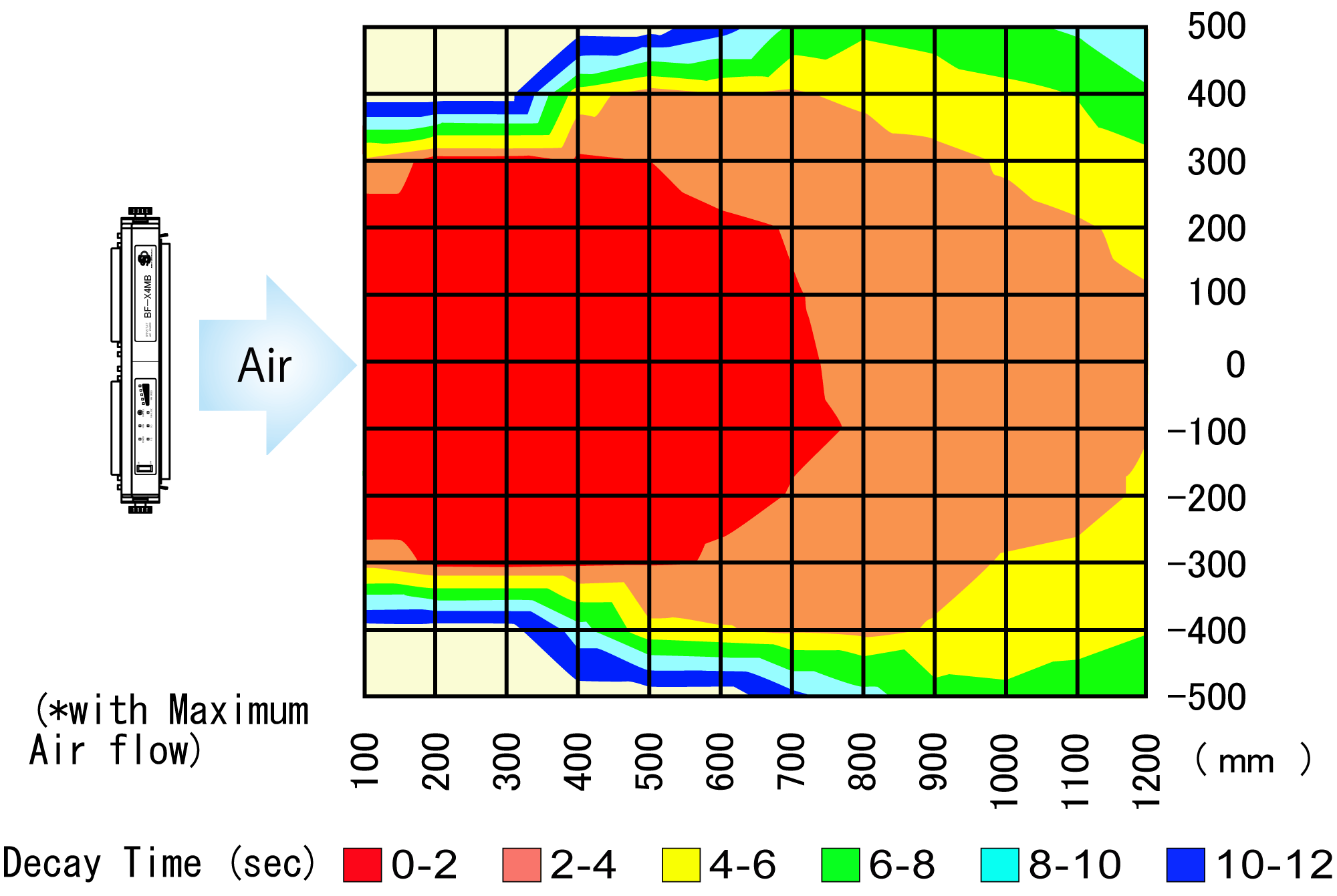

louver panel static elimination features and static elimination area
(Note 1): Uuse CPM, 150mm, 20pF to measure
(Note 2): Static elimination time is the decay time from ±1000V to ±100V
(Note 3): data above are measured data not a guranteed data
Specification
| Model | BF-X4ME |
|---|---|
| Input power | DC24V (AC adaptor AC100~240V) |
| Capacity | 25 VA(Maximum Fan speed) |
| Output Voltage | ±7,500 V0-p |
| Ion Balance | Below ±5 V(Distance at 300mm:initial setting) |
| Air Volume | 1.4 to 3.2 m3 / min ×2 fans |
| Air Speed | 1.6 ~ 3.3 m/sec(at 300mm center) |
| Ozone Level | Below 0.006 ppm(Distance at 150mm) |
| Environment | Temperature 0 ~ 40℃, 15 ~ 85%RH (No condensation) |
| Filter | Pre-filter level |
| Alarm Output | MOS FET Relay no-voltage b contact output(Abnormal HV or fan) |
| Dimensions | 370×159×78.5 mm (W×H×D) Without Stand |
| Weight | around 1600g(With Stand) |
| Noise | 68dB (A) (Distance at 1m ) |
| Accessories | Manual, AC Adaptor, Signal output cable(2) |
| Option | Emitter Needle unit :DNU-W85 Filters (10/package):OBF-F2ZA-1-10 Front louver :OBF-L300TA4 |
