BF-X2MC
WINSTAT Series
Equipped with HDC-AC and supports automatic cleaning！
Cleaning is performed with a built-in brush, and there is almost no need for maintenance.
- Purpose：
- Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesPrinting, coating processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort range
- Function：
-
Product features
Model BF-X2MC is update model of BF-2ZC with automatically cleaning emitter function as maintenance free performance. Automatically emitter cleaning (once per day), and manual cleaning available Ion Balance indicator.
- With SSD HDC-AC Technology, keep long stability performance.
- Safety function with Pulse discharge detection, Over current ditection.
- With alternative front louver, you can use for long distance or wide area ionization.
- Easy angle adjustable with locked for each angle.
- Alarm function: High voltage abnormal and locked Fan with alarm output.
(Left) ：Straight Louver
(Right)：Wide angle Louver
Options
Filter for replacement(10 sheets package)(OBF-F2MA-1-10)

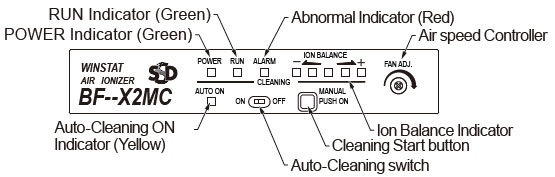

Indicator Panel
Specification
| Model | BF-X2MC |
|---|---|
| Input Power | DC24V (AC Adaptor AC100~240V avairable) |
| Capacity | 18VA |
| Output Voltage | ±7,500Vo-p |
| Ion Balance | Below ±5V (Distance at 300mm) |
| Air Volume | 1.4 to 3.2m3 / min |
| Air Speed | 1.8 to 3.6m / sec (with Straight Louver at 300mm center) 0.4 to 0.6m / sec (with wide angle louver at 300mm center) |
| Ozone density | Below 0.004ppm (Distance at 150mm) |
| Available environment | 0 to 40℃ / 15 to 85% RH (without condensation) |
| Filter | Pre-filter level |
| Signal Output | ALARM: MOS FET Relay Non-Voltage contact(NC)(HV abnormal, or Fan abnormal: OFF) ION BALANCE: MOS FET Relay Non-Voltage contact(NC)(Ion Balance abnormal: OFF) |
| Dimensions | 150×182×75mm (W×H×D) |
| Weight | Approx 1,200g (with stand frame) |
| Sound level | 59dB(A) (Distance:1m) |
| Accessories | Operation Manual, AC Adaptor,Wide angle louver, Signal output cable |
| Optional parts | Filter(10pcs) |
