ANZ-SC3
PIEZONIZER Series

Pencil type with a fingertip operation switch for turning air ON and OFF. Ideal for dealing with dust attached to lenses, etc.

With slim shape as Φ18mm, easy to fit for holding. And its light weight perform long time operation.
With High frequency Corona Discharging method, keep high performance ionization and good ion balance.
Air supply control with switching while your operation.
Additional new function as “PULSE BLOW” for Powerful particle blowing (5Hz and 10Hz).
Buzzer alarm when High voltage line has abnormal.
The emitter needle can be removed and replaced.
Applied RoHS.

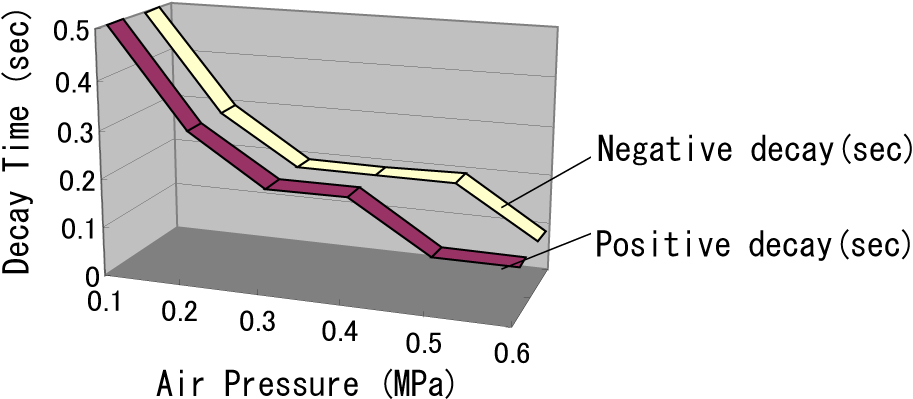

ANZ-SC3 elimination image

Model	ANZ-SC3
Input Voltage	DC24V (with AC adapter for AC100 to 240V)
Indication	Green:Normal condition Red:Abnormal condition
Buzzer Alarm	When H.V. is abnormal, the buzzer is on.
Abnormal signal output	Contact output under abnormal condition (MOS FET Realay Normally close , DC30V less 100mA)
Ion Balance	Under 賊15V
Ozone density	Under 0.04ppm (Distance at150mm from the nozzle hole)
Air Supply	Clean and Dry air
Air pressure range	0.05 to 0.6 MPa(with Speed Controller)
Air consumption	Maximum 190 ℓ/min(ANR)
Air blow	CONT : Continuously blow PULSE Hi : High Speed Pulse(10Hz) PULSE Lo : Low Speed Pulse(5Hz) *1
Enviroment	0 to 40℃ 15 to 65%RH(without Condensation)
Dimensions	ANZ body : 18 dia ×154L(mm) Controlbox : 135W×50H×75D(mm)
Weight	ANZ body : 95g Controlbox : 570g
Accessories	ANZ body, Controlbox, AC adaptor, Grounding cable, Holder(4 pcs), contactpin(5 pcs), air tubing, manual
Option	Emitter needle : DN-W17 Air Pressure Guage
Nozzle Application	Same as ZappⅡ

*1: The life time of electric valve in the controller is below 50 million times.
