ELIMINOSTAT Series

Bar ionizer equipped with HDC-AC.
Compared with previous products, this ionizer achieves an improvement of more than 30% in both static elimination time and compactness.

Product features
Specification

Contact Form

Purpose：: Semiconductors/Electronic devicesLCD panelsAssembly processesPC board mounting processesInspection processesWrapping/Packaging processesResin moldsFilmsGlassDust, foreign matterParts feedersShort rangePrintingcoating processesforeign matter

Function：

About Icons

Product features

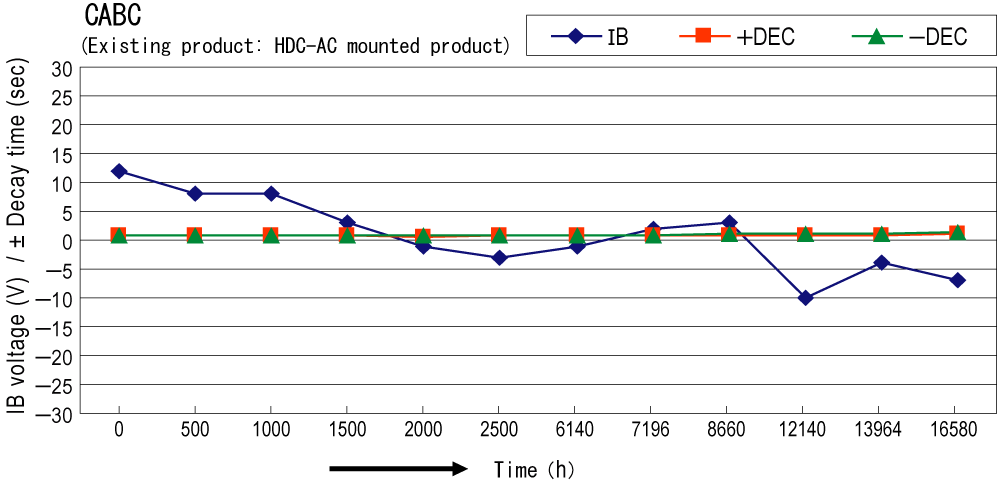

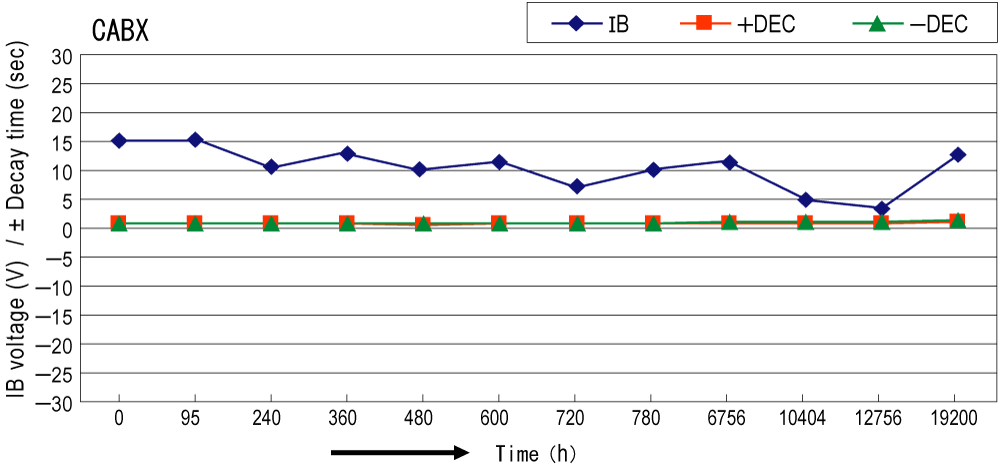

HDC-AC technology provides stable and long-term static elimination capabilities. We have designed an ionizer that does not require cleaning over the long term.

What is HDC-AC

30% improvement in static elimination times and product sizes (compared to Shishido Electrostatic's existing products)
The CABX is the next generation of Shishido Electrostatic’s existing CABC model. A 30% improvement over the existing product has been achieved with increased static elimination times and downsizing of the product. This is the industry’s leading static elimination ionizer.
Simplified low-flow type emitter needle nozzle for air consumption
Two types of emitter needle nozzles are available: the usual nozzle for air consumption and a low-flow type nozzle for compressed air consumption.
Cleaning timer function that indicates the cleaning time
An LED will light up when the timer had been set in advance and will indicate the cleaning time. The client can set the time when the light will appear. (9 patterns, 100-1000 hours and option not to set the light.)
Emitter needle variations
We provide needles that collect less dust, glass emitter needles and silicon emitter needles to respond to static elimination in environments in which little dirt is permitted.
Maintaining safety
Safety is maintained during use through the detection of minute electrical discharges and the low-voltage wiring input of the DC24V.
Safety features detect abnormal discharges and sparks
This safety feature automatically detects abnormal high-voltage discharge and shuts down the input such as when there is a short circuit in the ionizer's emitter needle.

(Left) ：High-flow type H nozzle (4 holes)
(Right)：Low-flow type L nozzle (2 holes)

Exchange of the emitter needle (Image)

Indicator Panel

Display explanation
POWER	The LED is lit while the power is turned on.
RUN	The LED is lit under normal operations.
ALARM	The LED lights up when a minute electrical discharge occurs in the emitter needle of the high-voltage main body or when an in-circuit current surge occurs.
CLEANING	When the approximate operating time exceeds that set using T•SELECT, a yellow LED lights up. It will stay lit until the RESET button is pressed.
TIMER RESET	To turn off the CLEANING LED.
T•SELECT	To select the approximate operating time before the CLEANING LED lights up.

Models according to electrode dimensions

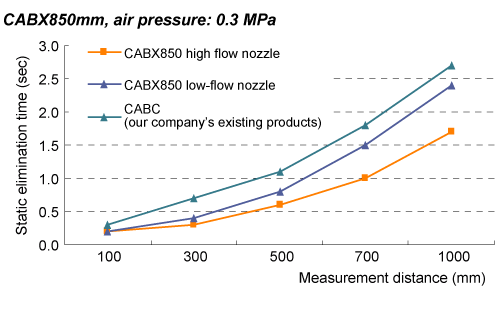

Static Elimination Features

Measurement distance(mm)	100	300	500	700	1000
CABX (high flow nozzle)	0.2	0.3	0.6	1.0	1.7
CABX (low-flow nozzle)	0.2	0.4	0.8	1.5	2.4
CABC (our company's existing products)	0.3	0.7	1.1	1.8	2.7

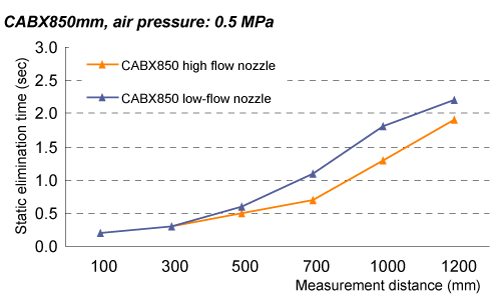

CABX Static Elimination Features(850bb、0.5MPa)

Measurement distance(mm)	100	300	500	700	1000	1200
CABX (high flow nozzle)	0.2	0.3	0.5	0.7	1.3	1.9
CABX (low-flow nozzle)	0.2	0.3	0.6	1.1	1.8	2.2

※This is reference data

Running Data

Air flow rate

unit:ℓ/min（ANR）

High-flow type H nozzle (4 holes)
	350	600	850	1100	1350	1600	1850	2100	2350	2600	2850	3100
0.05MPa	22	41	53	62	68	92	130	145	149	154	159	163
0.1MPa	32	59	81	95	105	112	194	223	229	244	250	259
0.2MPa	48	89	122	151	168	180	294	328	343	362	374	383
0.3MPa	61	117	165	200	230	248	381	426	466	496	516	531
0.4MPa	78	149	208	259	293	321	499	559	614	654	678	698
0.5MPa	95	177	255	323	362	393	622	687	748	806	848	882

unit:ℓ/min（ANR）

Low-flow type L nozzle (2 holes)
	350	600	850	1100	1350	1600	1850	2100	2350	2600	2850	3100
0.05MPa	11	22	33	44	50	55	80	91	100	108	115	126
0.1MPa	16	32	48	52	60	81	112	130	146	158	171	184
0.2MPa	26	48	70	91	106	129	177	201	227	246	270	289
0.3MPa	34	63	95	123	149	173	240	276	303	333	363	397
0.4MPa	42	82	120	157	188	222	306	363	388	423	461	492
0.5MPa	51	91	143	187	233	274	374	425	471	515	556	598

Options

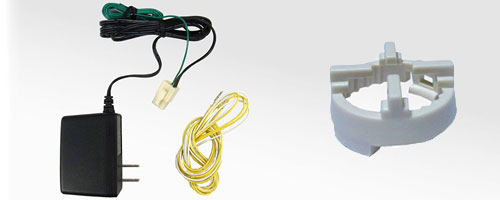

(Left) AC adapter ／ (Right) Nozzle guard

Intermediate bracket

Optional parts to support easy static elimination
CABX custom AC adapter	OCAB-DA2 (input voltage AC100V-240V)
Intermediate bracket	OCABX-SUSP-A (over 1100mm comes as standard equipment)
Power supply and signal extension cable	OCABX-ENC3M (length : 3m)
Low-flow type L nozzle	Tungsten emitter needle type : OCABX-NDL-LW01 Silicon emitter needle type : OCABX-NDL-LS01 Glass emitter needle type : OCABX-NDL-LG01
High-flow type H nozzle	Tungsten emitter needle type : OCABX-NDL-HW01 Silicon emitter needle type : OCABX-NDL-HS01 Glass emitter needle type : OCABX-NDL-HG01

Specification

Model	ELIMINATOR CABX
Ion generation method	Corona discharge method (HDC-AC)
Input power supply	DC24 V ±5 %
Output voltage under abnormal circumstances	No voltage contact output (by normal close MOSFET relay)

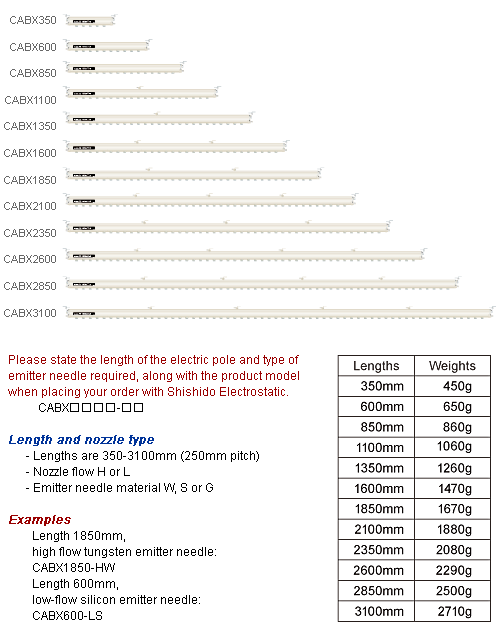

Unit dimensions	350 to 3100×92×29 mm (W×H×D)
Air supply range	Less than 0.5 MPa
Ion balance	Within ±30 V (distance 300 mm, air pressure 0.3 MPa at time of supply)
Operating environment	Surrounding temperature: 5 to 40 ℃ , surrounding humidity: 15% to 85% (no condensation) Air supply: clean dry air
Accompanying items	Operation manual, mounting bracket, power supply and signal connector cable (3 m), intermediate bracket (over 1100 mm)

CABX ELIMINOSTAT Series

Bar ionizer equipped with HDC-AC. Compared with previous products, this ionizer achieves an improvement of more than 30% in both static elimination time and compactness.
