This page explains compatibility between discontinued products and current products for the SSD product ELIMINOSTAT. There are many types of special specifications for high-voltage transformers and static elimination electrodes, and thus there are cases which differ from the combinations in these tables. When placing an actual order, please check directly with our company's Sales Division.

In the ELIMINOSTAT Series, there are multiple types of connectors for the high-voltage connection point. There is no compatibility between the different types, and thus connection with the static elimination electrode is done using the same type of connector. The high-voltage transformer side is a female connector, and the electrode side is a male connector.

SAT connector: Latest high-voltage connector, compact type.
SH connector: Legacy connector previously used for a long time. Compact and easy-to-use type. Production has been discontinued.
SS connector: Ultra-compact connector specially for SS transformers. Production has been discontinued.

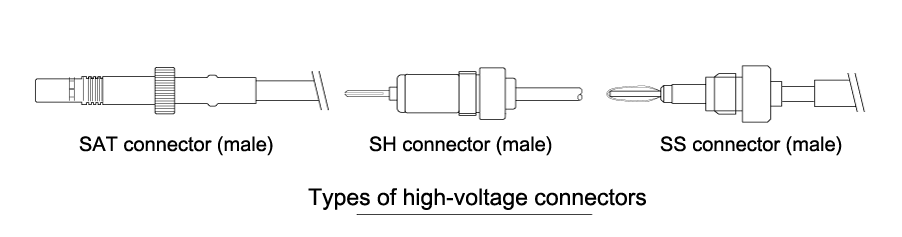

Types of high-voltage connectors

High-voltage power supply and connector types

Connector name	Applicable high-voltage transformer
SAT connector (female)	SAT-10、SAT-11、SAT-20、SAT-30、AT-10、SSII
SH connector (female)	SH-1、SH-3、SD、SD-3、MT、ST、RTS、UMT、WTS、VT
SS connector (female)	SS

The branch box of the HVB Series corresponds to the SAT connector.

Connection of new static elimination electrode with old high-voltage power supply

Product name	Connection with electrode equipped with SAT male connector
SS	SS male connector + SAT male connector cable + branch box
SH-1、SH-3、SD、SD-3、MT、ST、RTS、UMT、WTS、VT	SS male connector + SAT male connector cable + branch box

※Old high-voltage power supplies are not equipped with a safety circuit. Also, old electrodes were the type with unshielded high-voltage wire, and thus if these are used after switching to the current shielded wire type, the load current may exceed the permissible value, resulting in malfunction or poor performance. If you are using an old transformer, please inquire with our Sales Division when replacing the electrode.

Method of connecting between an old static elimination electrode and a new high-voltage power supply, and sample diagrams

Product name	Method of connecting to SATA Series high-voltage power supply
SH male connector, shielded wire electrode of BO, BIC, BHC, etc.	SAT Series power supply + SAT male connector - SH female connector cable (SAT-SHF-ECS***-A1) (Fig. 3)
SH male connector, unshielded wire electrode of BO, BIC, BHC, etc.	SAT Series power supply + SAT male connector - SH female connector cable (SAT-SHF-EC***) (Fig. 4)
Electrode with SS male connector	SAT Series power supply + SAT male connector - SS female connector cable

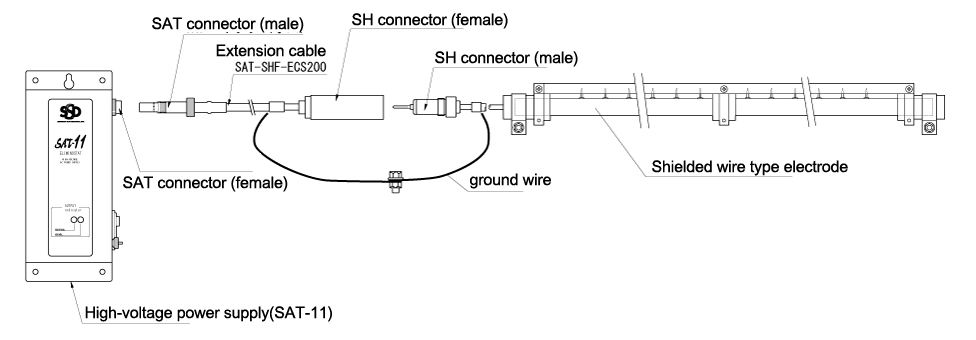

（Fig. 3）Example of connection between SAT connector - SH connector

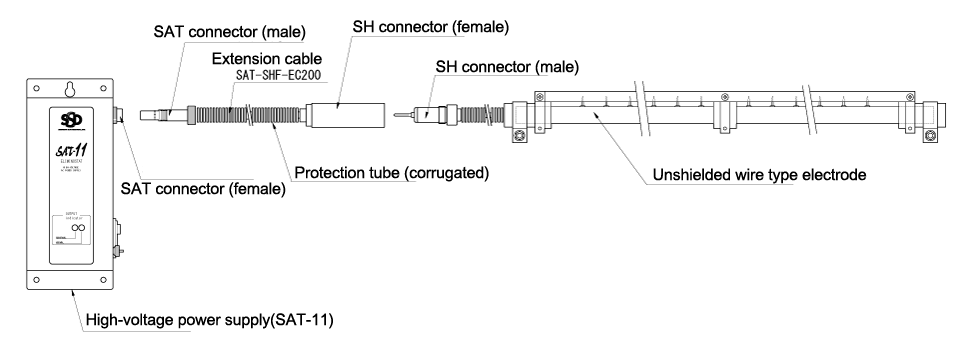

（Fig. 4）Example of connection between SAT connector - SH connector

Model names of connector conversion cables (Shielded type)

Connection conversion type	Product model name
When connecting branch box of SAT to transformer of SH female connector (SH-1, SH-3, ST, etc.)	SHM-SAT-ECS200-A1 (cable length 200 mm) SHM-SAT-ECS500-A1 (cable length 500 mm) SHM-SAT-ECS1000-A1 (cable length 1000 mm)
When connecting electrode of SH male connector (shielded wire) to transformer of SAT female connector (SAT-10, SAT-20-2, etc.)	SAT-SHF-ECS200-A1 (cable length 200 mm) SAT-SHF-ECS500-A1 (cable length 500 mm) SAT-SHF-ECS1000-A1 (cable length 1000 mm) SAT-SHF-ECS1500-A1 (cable length 1500 mm)

Model names of connector conversion cables (Unshielded type)

Connection conversion type	Product model name
When connecting electrode of SH male connector (unshielded wire) to transformer of SAT female connector (SAT-10, SAT-20-2, etc.)	SAT-SHF-EC100 (cable length 100 mm) SAT-SHF-EC200 (cable length 200 mm) SAT-SHF-EC500 (cable length 500 mm) SAT-SHF-EC1000 (cable length 1000 mm)
